New features of the value-for-money Singer Gazelle.

Brilliant new 1,725 c.c., o.h.v. engine of advanced 'square' design, giving increased power and torque.
Proved for economy and reliability. Incorporating five-bearing crankshaft for smooth, quiet running - plus other advanced features. Top speeds around 85 m.p.h.
Roomy interior. With wheel arch intrusion eliminated, rear seat now has increased seating space.
Increased comfort. New resilient seating trim.
Improved front-end styling for greater elegance.
No-draught ventilators with new self-locking device.
Choice of new colour schemes.

- plus -

Four-speed all-synchromesh gearbox for smooth, quick gearchanges.
Self-adjusting diaphragm clutch - needs only light pedal pressure.
Fully-automatic transmission or overdrive as an optional extra.
Front disc brakes and self-adjusting rear drum brakes, for safe, smooth braking.
Stylish interior trim with facia and door cappings in walnut veneer.
Handsome facia panel padded for safety. Lockable glove box. Clear, easy to read instruments.

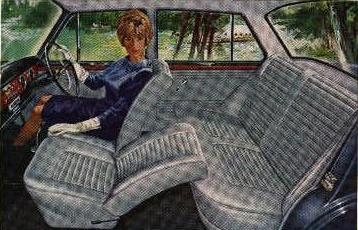

Individual front seats, fully adjustable, even to a 'reclining' position.
Heating, ventilating and de-misting system, standard equipment.
Wheel trims and overriders as standard.
No greasing points - routine servicing only every 6,000 miles.

Specification of the Singer Gazelle Saloon
Engine: Four-cylinder five-bearing crankshaft unit with push rod operated overhead valves. Zenith down-draught carburettor.
Bore and Stroke: 3.21 in. x 3.25 in. (81.5 mm. x 82.55 mm.).
Cubic capacity: 105.2 cu. in. (1,725 c.c).
Engine develops 62.5 maximum b.h.p. at 4,200 r.p.m. and maximum torque 98.5 lb. ft. at 2,200 r.p.m.
Compression ratio 8.4 : 1

Ignition: Coil and distributer; Centrifugal advance and retard mechanism, vacuum control. Champion N5 sparking plugs.

Cooling system: Centrifugal pump and fan; Thermostatic control. Coolant pressure fed to cylinder head with selective cooling of valve seats, stems and sparking plug bosses.

Clutch: 7 1/2 in. Borg and Beck diaphragm spring, Hydraulically operated by pendant pedal.

Gearbox: Four forward speeds and reverse with control ring synchromesh on all forward gears. A centre-floor gear change is fitted.

Rear axle: Hypoid semi-floating axle shafts to the rear wheels. Ratio: 3.89 : 1.
Overall ratios: Top 3.89 : 1, Third 5.413 : 1, Second 8.324 : 1, First 13.04 : 1, Reverse 13.88 : 1.

Chassis: Unitary construction of chassis and body provides exceptional strength and rigidity.

Front suspension: Fully independent front wheel suspension by means of swinging links and coil springs controlled by double acting hydraulic telescopic shock absorbers and a torsion bar sway eliminator fitted between the lower links. All greasing points have been eliminated.

Rear suspension: Semi-elliptic leaf springs with dual rate characteristics to suit load conditions. Double acting hydraulic telescopic shock absorbers maintain adequate control.

Wheels: Five pressed steel wheels with wide base rims. Four wheels are embellished with polished nave plates and wheel trim discs. Spare wheel held vertical in well on right-hand side of luggage compartment.

Tyres: Tubeless 6.00 x 13 in.

Brakes: Lockheed hydraulic, 10.3 in. disc brakes at front with 9 in. brake drums at rear. The handbrake operates through a system of cables and the linkage is independent of the footbrake.

Steering: Burman recirculating ball type. Three-piece symmetrical track rod linkage. No greasing points. Dished steering wheel with chromium-plated horn ring.

Petrol tank: 10 gallon capacity positioned beneath luggage compartment floor.

Standard equipment: Heating and ventilating equipment; screen washers; boot floor mat; two interior sun visors; overriders; fully reclining front seats.

Colour Schemes:

**TWO TONES.**
*The first named colour is the predominant colour, the second is the side flash.*
Dawn Mist/Charcoal. with Red upholstery. Foam White/Pippin Red. with Red upholstery. Silver Grey Metallic/Embassy Black with Black upholstery. Royal Blue Metallic/Dawn Mist. with Grey upholstery.	Holly Green/Willow Green. with Green upholstery. Silver Moss Metallic/Embassy Black. with Green upholstery. Maroon/Cavalry Beige. with Beige upholstery.

**SINGLE TONES.**
Embassy Black. with Red upholstery. Royal Blue Metallic. with Grey upholstery.	Lavender Grey Metallic. with Lilac upholstery.

Optional extras: The following extras are available ex-factory at extra cost and can only be specified at the time of placing the order:

Borg-Warner fully-automatic transmission. No system is simpler to handle or more completely automatic. Ask your Dealer for details.
Laycock-de-Normanville overdrive. On top and third gears, with convential transmission.
White-wall tyres.

Special accessories: (Available at extra cost). A very full and attractive range of accessories is available, including Smiths Radiomobile, clock, etc. Full details can be obtained from your Rootes Dealer
